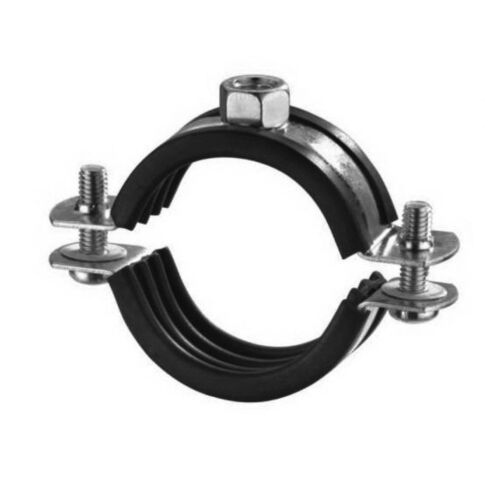

Pipe Clamp according to DIN 4109

Material: Zinc plating

Grouped product items
Rohrschellen nach DIN 4109 M 8 Abmessung 1/4" Spannbereich 12 - 16 mm V4981216	Qty 2265 Pc. in stock Out of stock	-,-- £ Excl. Tax
Dimension MaterialGalvanised SoundproofDIN 4109 Dimension1/4" Clamping Range (mm)12 - 16 Material Dimension (mm)1,2 x 20 Recommended Weight Load (KN)1,2 Screw SizeM 8 Pieces per Carton100 Temperature -50°C to +110°C
Rohrschellen nach DIN 4109 M 8 Abmessung Spannbereich 15 - 19 mm V4981519	Qty 2416 Pc. in stock Out of stock	-,-- £ Excl. Tax
Dimension MaterialGalvanised SoundproofDIN 4109 Dimension3/8" Clamping Range (mm)15 - 19 Material Dimension (mm)1,2 x 20 Recommended Weight Load (KN)1,2 Screw SizeM 8 Pieces per Carton100 Temperature -50°C to +110°C
Rohrschellen nach DIN 4109 M 8 Abmessung 1/2" Spannbereich 20 - 23 mm V4982023	Qty 2025 Pc. in stock Out of stock	-,-- £ Excl. Tax
Dimension MaterialGalvanised SoundproofDIN 4109 Dimension1/2" Clamping Range (mm)20 - 23 Material Dimension (mm)1,2 x 20 Recommended Weight Load (KN)1,2 Screw SizeM 8 Pieces per Carton100 Temperature -50°C to +110°C
Rohrschellen nach DIN 4109 M 8 Abmessung 3/4" Spannbereich 26 - 28 mm V4982628	Qty 2071 Pc. in stock Out of stock	-,-- £ Excl. Tax
Dimension MaterialGalvanised SoundproofDIN 4109 Dimension3/4" Clamping Range (mm)26 - 28 Material Dimension (mm)1,2 x 20 Recommended Weight Load (KN)1,2 Screw SizeM 8 Pieces per Carton100 Temperature -50°C to +110°C
Rohrschellen nach DIN 4109 M 8 Abmessung 1" Spannbereich 32 - 35 mm V4983235	Qty 2155 Pc. in stock Out of stock	-,-- £ Excl. Tax
Dimension MaterialGalvanised SoundproofDIN 4109 Dimension1" Clamping Range (mm)32 - 35 Material Dimension (mm)1,2 x 20 Recommended Weight Load (KN)1,2 Screw SizeM 8 Pieces per Carton100 Temperature -50°C to +110°C
Rohrschellen nach DIN 4109 M 8 1-1/4" Abmessung Spannbereich 40 - 43 mm V4984043	Qty 2394 Pc. in stock Out of stock	-,-- £ Excl. Tax
Dimension MaterialGalvanised SoundproofDIN 4109 Dimension1 1/4" Clamping Range (mm)40 - 43 Material Dimension (mm)1,2 x 20 Recommended Weight Load (KN)1,2 Screw SizeM 8 Pieces per Carton100 Temperature -50°C to +110°C
Rohrschellen nach DIN 4109 M 8 Abmessung Spannbereich 44 - 49 mm V4984449	Qty 2407 Pc. in stock Out of stock	-,-- £ Excl. Tax
Dimension MaterialGalvanised SoundproofDIN 4109 Dimension1 1/4" Clamping Range (mm)44 - 49 Material Dimension (mm)1,2 x 20 Recommended Weight Load (KN)1,2 Screw SizeM 8 Pieces per Carton50 Temperature -50°C to +110°C
Rohrschellen nach DIN 4109 M 8 1-1/2" Abmessung Spannbereich 50 - 56 mm V4985056	Qty 2347 Pc. in stock Out of stock	-,-- £ Excl. Tax
Dimension MaterialGalvanised SoundproofDIN 4109 Dimension1 1 /2" Clamping Range (mm)50 - 56 Material Dimension (mm)1,2 x 20 Recommended Weight Load (KN)1,2 Screw SizeM 8 Pieces per Carton50 Temperature -50°C to +110°C
Rohrschellen nach DIN 4109 M 8 Abmessung Spannbereich 57 - 61 mm V4985761	Qty 2797 Pc. in stock Out of stock	-,-- £ Excl. Tax
Dimension MaterialGalvanised SoundproofDIN 4109 Dimension2" Clamping Range (mm)57 - 61 Material Dimension (mm)1,2 x 20 Recommended Weight Load (KN)1,2 Screw SizeM 8 Pieces per Carton50 Temperature -50°C to +110°C
Rohrschellen nach DIN 4109 M 8 / M 10 Abmessung 2" Spannbereich 63 - 67 mm V4986367M	Qty 2719 Pc. in stock Out of stock	-,-- £ Excl. Tax
Dimension MaterialGalvanised SoundproofDIN 4109 Dimension2" Clamping Range (mm)63 - 67 Material Dimension (mm)1,2 x 20 Recommended Weight Load (KN)1,2 Screw SizeM 8 / M 10 Pieces per Carton50 Temperature -50°C to +110°C
Rohrschellen nach DIN 4109 M 8 / M 10 Abmessung 2" Spannbereich 70 - 73 mm V4987073M	Qty 2898 Pc. in stock Out of stock	-,-- £ Excl. Tax
Dimension MaterialGalvanised SoundproofDIN 4109 Dimension2" Clamping Range (mm)70 - 73 Material Dimension (mm)1,2 x 20 Recommended Weight Load (KN)1,5 Screw SizeM 8 / M 10 Pieces per Carton50 Temperature -50°C to +110°C
Rohrschellen nach DIN 4109 M 8/M 10 2-1/2" Abmessung Spannbereich 74 - 80 mm V4987480M	Qty 2619 Pc. in stock Out of stock	-,-- £ Excl. Tax
Dimension MaterialGalvanised SoundproofDIN 4109 Dimension2 1/2" Clamping Range (mm)74 - 80 Material Dimension (mm)1,5 x 25 Recommended Weight Load (KN)1,5 Screw SizeM 8 / M 10 Pieces per Carton50 Temperature -50°C to +110°C
Rohrschellen nach DIN 4109 M 8 / M 10 Abmessung 2 1/2" Spannbereich 81 - 86 mm V4988186M	Qty 2998 Pc. in stock Out of stock	-,-- £ Excl. Tax
Dimension MaterialGalvanised SoundproofDIN 4109 Dimension2 1/2" Clamping Range (mm)81 - 86 Material Dimension (mm)1,5 x 25 Recommended Weight Load (KN)1,5 Screw SizeM 8 / M 10 Pieces per Carton50 Temperature -50°C to +110°C
